FU (Pallet Decoiler)
| Categories | Pallet Decoiler |
|---|---|
| Brand | HongEr |
| Model | FU |
| Update Time | May 30,2023 |
Detail Information
Product Description
FU PALLET DECOILER
FU is HongEr pallet decoiler, ideal for high speed stamping line, such as terminal stamping, metal button and small electrical parts pressing line.
The feeding speed can reach 24m per min.
It can stock 4pcs of 150mm width coil at one time, and suitable for all kind of coil inner diameter.
Specification
Model |
FU-500 | FU-1000 | FU-2000 |
Max. Coil Width |
150 mm |
||
Coil Thickness | 0.1 mm - 1.0 mm | ||
Loading Weight | 500 kgs | 800 kgs | 1500 kgs |
Max. Loading Height | 600 mm | ||
Max. Coil O.D. | 800 mm | 1000 mm | 1200 mm |
Feeding Speed | 24 m/min | ||
Motor | 0.5 HP | 1 HP | 2 HP |
Inverter | No | Delta, Taiwan | |
Application
FU pallet decoiler is ideal for high speed stamping, such as terminal stamping, metal button and small electrical parts production line.

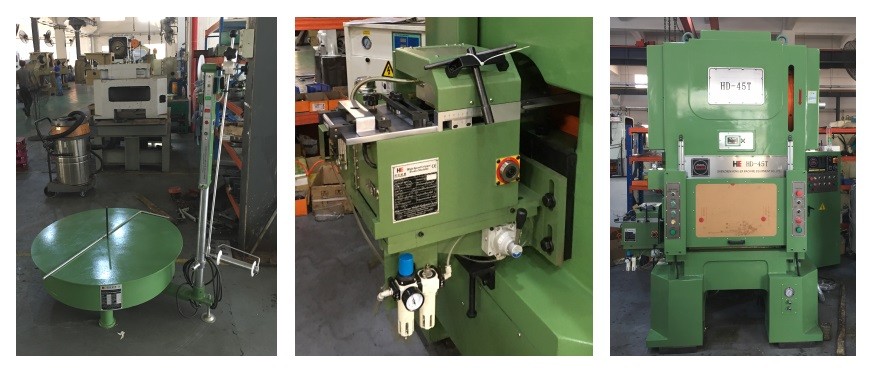

General configruation for terminal stamping line:

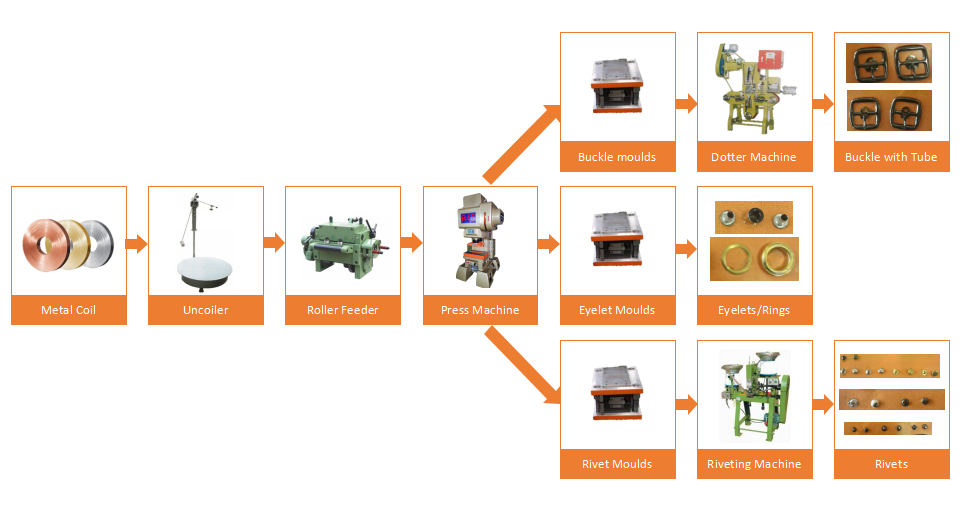

General configruation for metal button stamping line:

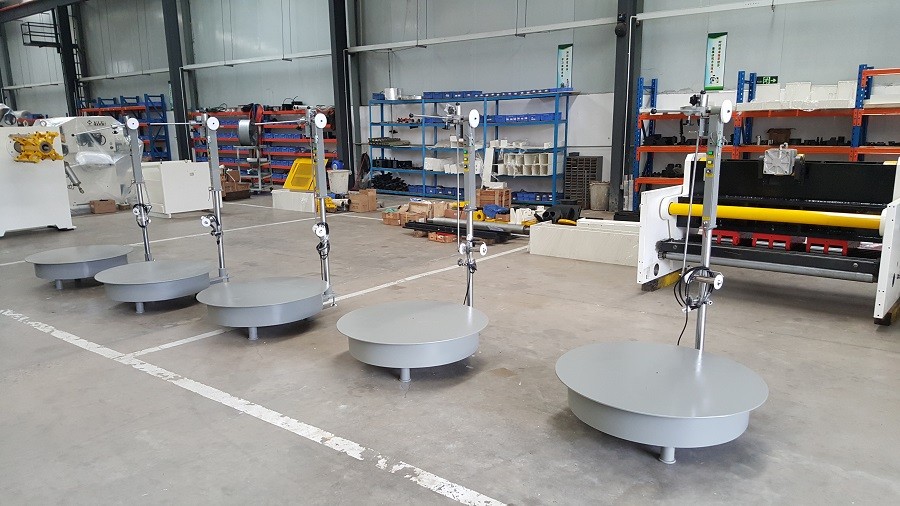

High Speed Clip Stamping Line to Brazil:

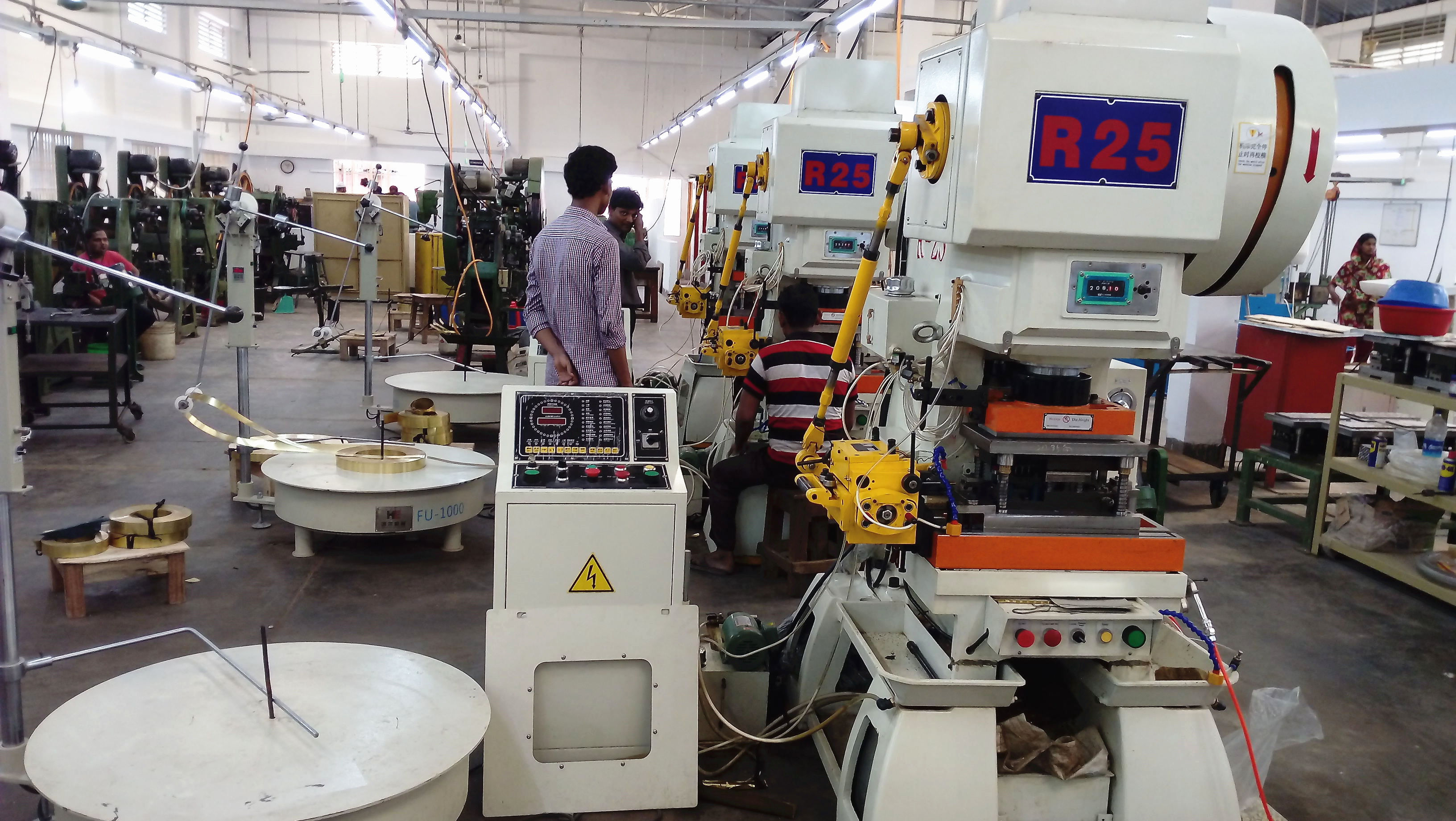

High Speed Metal Button Stamping Line to Bangladesh:
![[FU-2000] High Speed Coil Pallet for Eyelets Punching Buckles](https://icdn.tradew.com/file/201405/1556694/png/6994475.png?x-oss-process=image/resize,m_pad,l_120/quality,Q_90)
![[FU-500] Pallet Decoiler for metal buttons punching line](https://icdn.tradew.com/file/201405/1556694/png/6994473.png?x-oss-process=image/resize,m_pad,l_120/quality,Q_90)
![[FU-1000] Horizontal Decoiler for High Speed Terminal Stamping](https://icdn.tradew.com/file/201405/1556694/png/6994474.png?x-oss-process=image/resize,m_pad,l_120/quality,Q_90)
