DBMT (Double Decoiler)
![DBMT (Double Decoiler)](https://icdn.tradew.com/file/201405/1556694/jpg/6760105.jpg?x-oss-process=image/resize,m_pad,l_250/quality,Q_90)
![DBMT (Double Decoiler)](https://icdn.tradew.com/file/201405/1556694/jpg/6760105.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![DBMT (Double Decoiler)](https://icdn.tradew.com/file/201405/1556694/jpg/6760106.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![DBMT (Double Decoiler)](https://icdn.tradew.com/file/201405/1556694/jpg/6760107.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![DBMT (Double Decoiler)](https://icdn.tradew.com/file/201405/1556694/jpg/6760108.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![DBMT (Double Decoiler)](https://icdn.tradew.com/file/201405/1556694/jpg/6760038.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
Categories | Double Decoiler |
---|---|
Brand | HongEr |
Model | DBMT |
Update Time | Jul 27,2024 |
Detail Information
Product Description

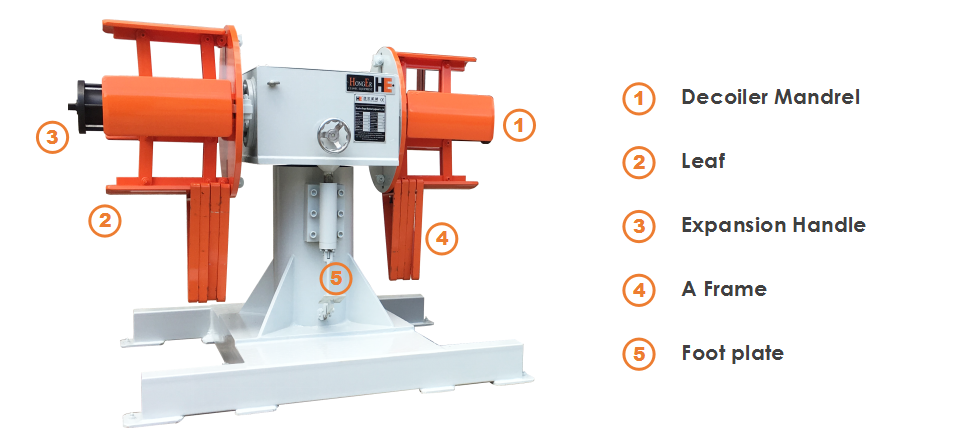

DBMT Non-Motorized Double Decoiler
Operation: Non-Motorized
Mandrel Expansion: Manually
Application: Press Feed
Ideal for high speed lamination stamping line
![](https://icdn.tradew.com/file/201405/1556694/png/6760099.png?x-oss-process=image/quality,Q_90)
Specification
Model | DBMT-200 | DBMT-300 | DBMT-400 |
Coil Width | 200 mm | 300 mm | 400 mm |
Coil Thickness |
0.1 mm - 1.6 mm |
||
Coil I.D. | 450-530 mm | ||
Coil O.D. |
1200 mm |
||
Coil Weight | 500 kgs per side | 1000 kgs per side | 1500 kgs per side |
Expansion | Manual Expanion | ||
Pressing Arm | No | ||
Power | No | ||
Inverter | No |
Packing
![](https://icdn.tradew.com/file/201405/1556694/jpg/6760006.jpg?x-oss-process=image/quality,Q_90)

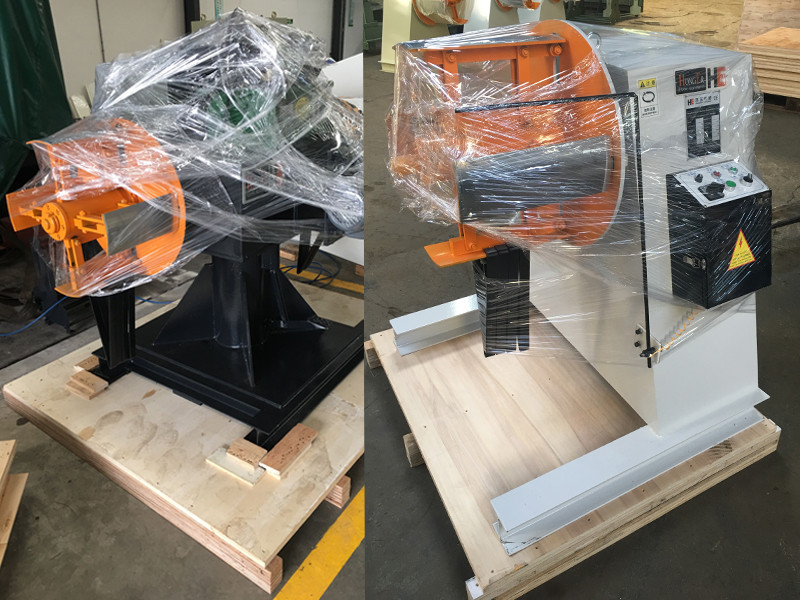

Machine wrapped up with plastic film
![](https://icdn.tradew.com/file/201405/1556694/jpg/6760007.jpg?x-oss-process=image/quality,Q_90)
Fix decoiler machine into wooden case
![](https://icdn.tradew.com/file/201405/1556694/jpg/6760008.jpg?x-oss-process=image/quality,Q_90)
Delivery packages to port
Application

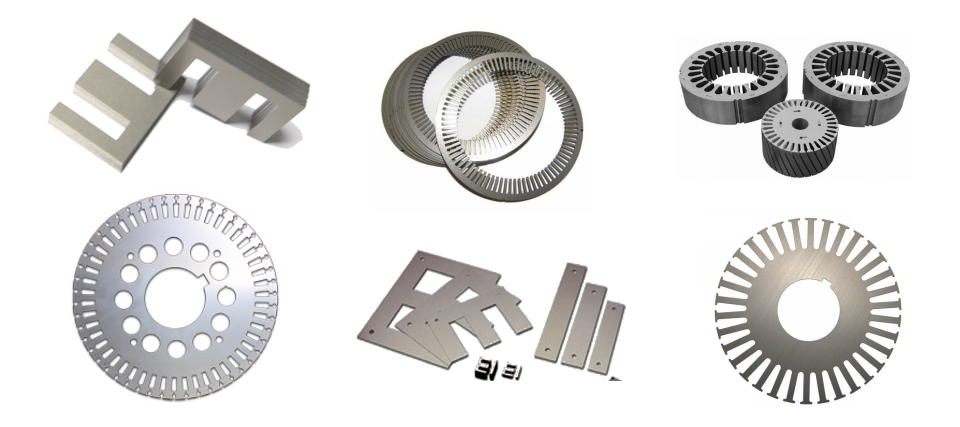

Most of our double decoilers are used in stator and rotor lamination stamping and EI laminations production line.
![](https://icdn.tradew.com/file/201405/1556694/png/6760103.png?x-oss-process=image/quality,Q_90)

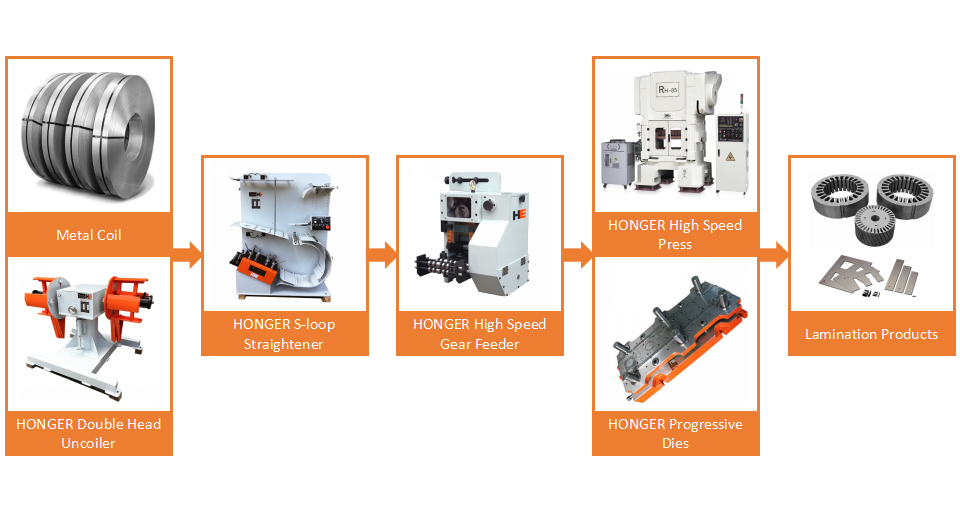

General configruation for lamination stamping line:
![](https://icdn.tradew.com/file/201405/1556694/png/6760104.png?x-oss-process=image/quality,Q_90)
