Expert Solution Designer For Coil Handling And Press Feeding Line
GS (High Speed Gripper Feeder)
| Categories | Gripper Feeder |
|---|---|
| Brand | HongEr |
| Model | GS |
| Update Time | May 30,2023 |
Detail Information
Product Description

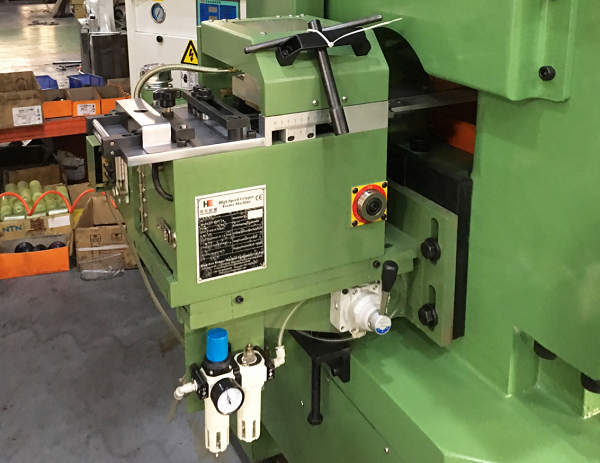

GS MECHANICAL GRIPPER FEEDER
GS is HongEr mechanical gripper feeder machine, ideal for high speed stamping line, such as terminal stamping, small electrical parts stamping etc.

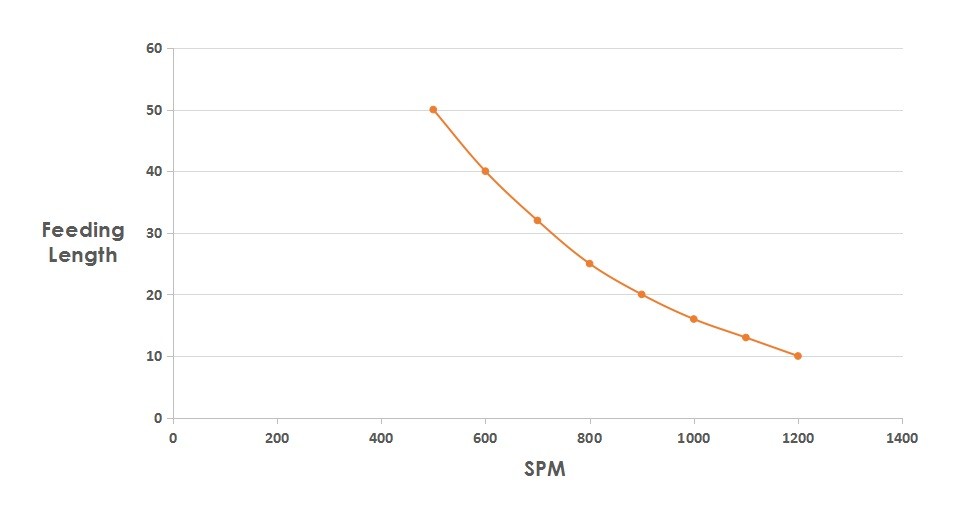

The feeding speed can reach 1200SPM.
Without marks left on the material surface after feeding, gripper feeder is ideal for copper, stainless steel, aluminum etc.material.
Specification
Model |
GS-906 |
Max. Coil Width |
90 mm |
Max. Feeding Length |
60 mm |
Feeding Angle |
180 |
Coil Thickness (mm) | 0.1-1.5 mm |
Feeding Line Height | 60-120 |
Release Angle | Adjustable |
Feeding Mechanism | Crank Shaft Transmission |
Installation Location | Left |
Feeding Direction | From Left to Right |
Application
GS high speed mechanical gripper feeder is ideal for high speed stamping, such as terminal stamping and small electrical parts production line.
General configruation for terminal stamping line:
High Speed Clip Stamping Line to Brazil:
