GL-400H 2 In 1 Decoiler And Straightener Machine

GL-400H 2 In 1 Decoiler And Straightener Machine

Mar 27,2018

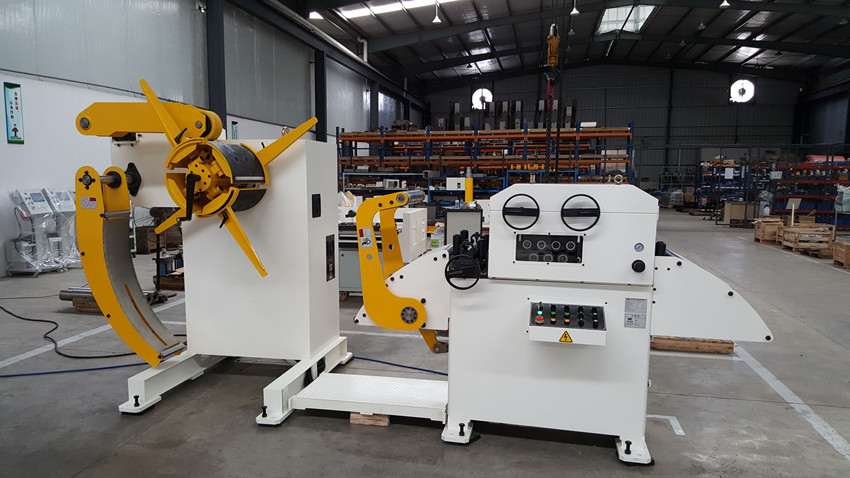

GL-400H 2 In 1 Decoiler And Straightener Machine
Specs:
Coil width:400mm
Coil thickness:0.5-4.5mm
Coil inside diameter:460-520mm
Coil outside diameter:1200mm
Loading capacity:2000kg

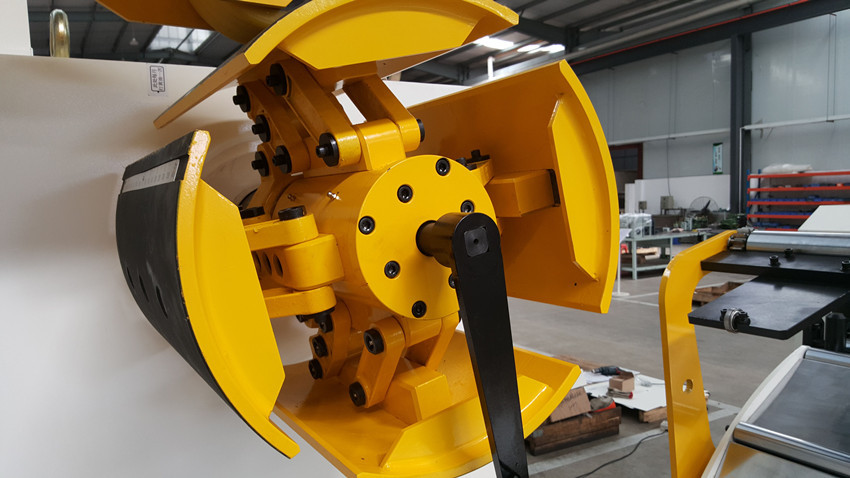

Expansion style:Manual Expansion

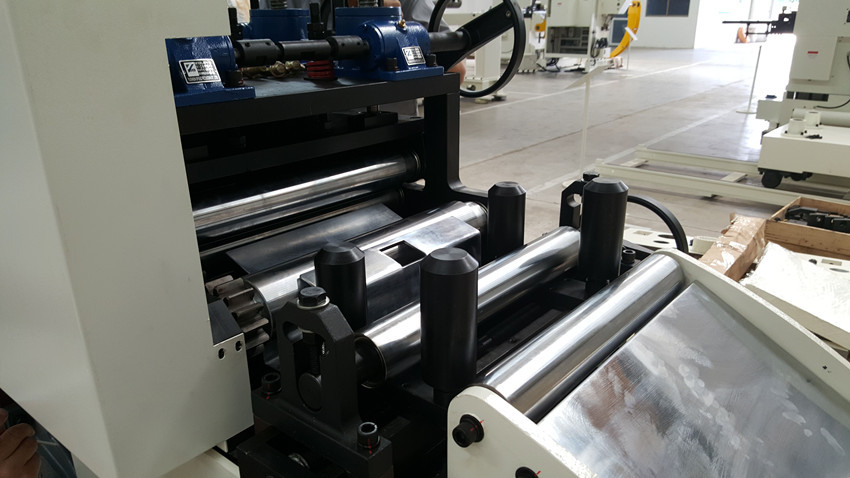

Straightener roller:Ø68mm*7pcs
Uncoiler Motor:1.5kw
Straightener Motor:2.2kw
Roller pressing way:Pneumatic rod
Roller adsjuting way:Eccentric turbine worm adjusting
Inverter:Delta,Taiwan
Feeding speed:16m/min
Pressing arm:Without

Send the inquiry, Honger is ready to design the best machine solution for you!
