Metal Strip Automatic Hydraulic Expansion Uncoiler Straightener Feeder 3 in 1 GLK4-400 to India

Metal Strip Automatic Hydraulic Expansion Uncoiler Straightener Feeder 3 in 1 GLK4-400 to India
Issue Time:2018-03-20
Metal Strip Automatic Hydraulic Expansion Uncoiler Straightener Feeder 3 in 1 GLK4-400 to India

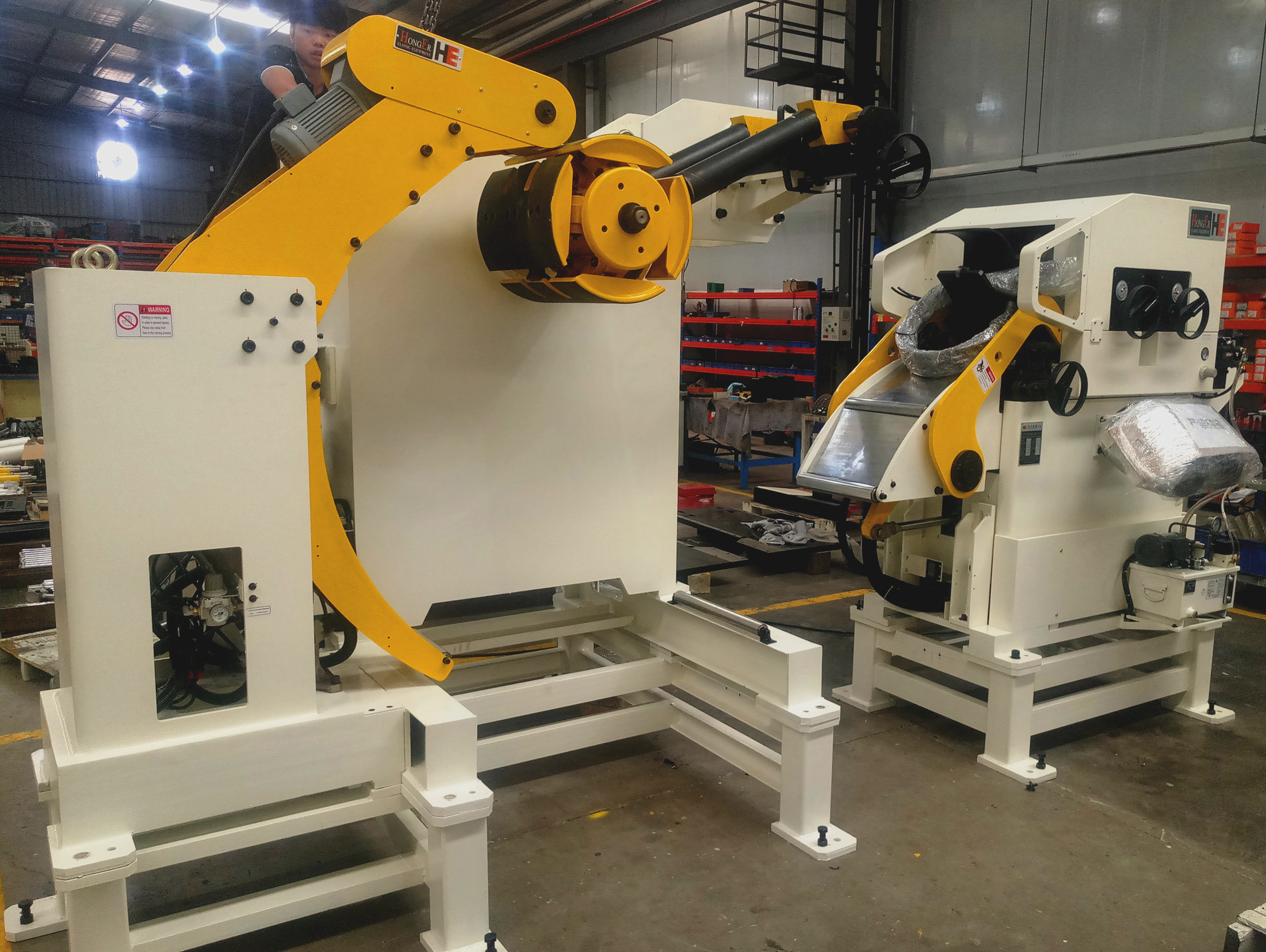

Uncoiler Straightener Feeder 3 in 1 GLK4-400 :

Yield strength:≤245N/mm²
Tensile strength:≤392N/mm²
Coil width:70-400mm
Coil thickness:0.6-6.0mm
Feeding length:9999.99mm
Coil inside diamete:508mm
Coil outside diamete:1400mm
Max coil weight:5000kg
Max feeding speed:16-24m/min
Feeding precision:±0.15mm
Straightener roller:φ68mm*7(Up4/Down3)
Feeding roller:2pieces
Auxiliary roller:φ68mm*9pieces
Pressing arm:Pneumatic Type
Uncoiler motor:2.2kw
Servo motor:5.5kw
Feeding line height:1200mm±100
Expansion way:Hydraulic
Feeding direction:From left to right

Send the inquiry, Honger is ready to design the best machine solution for you!
