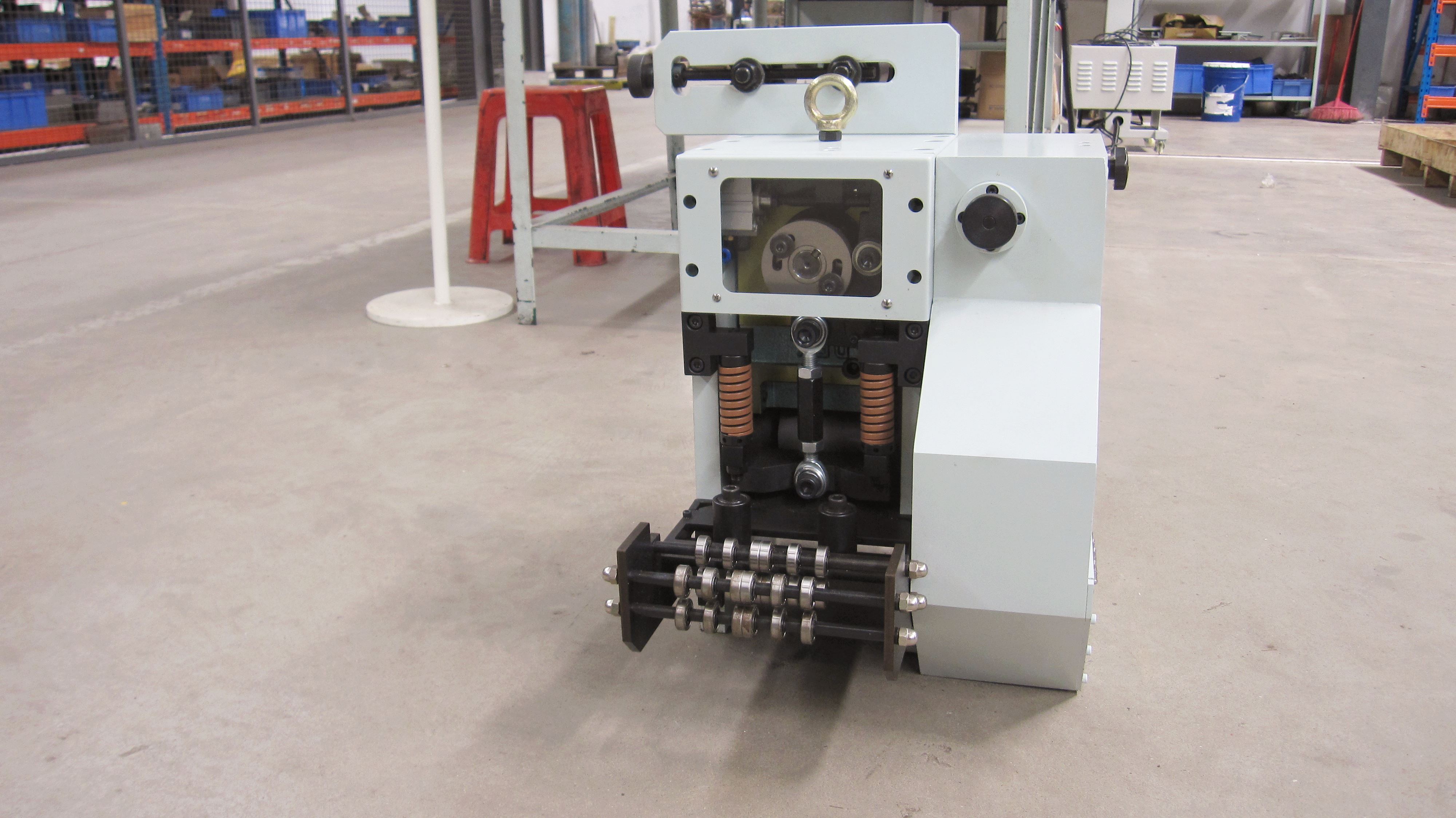

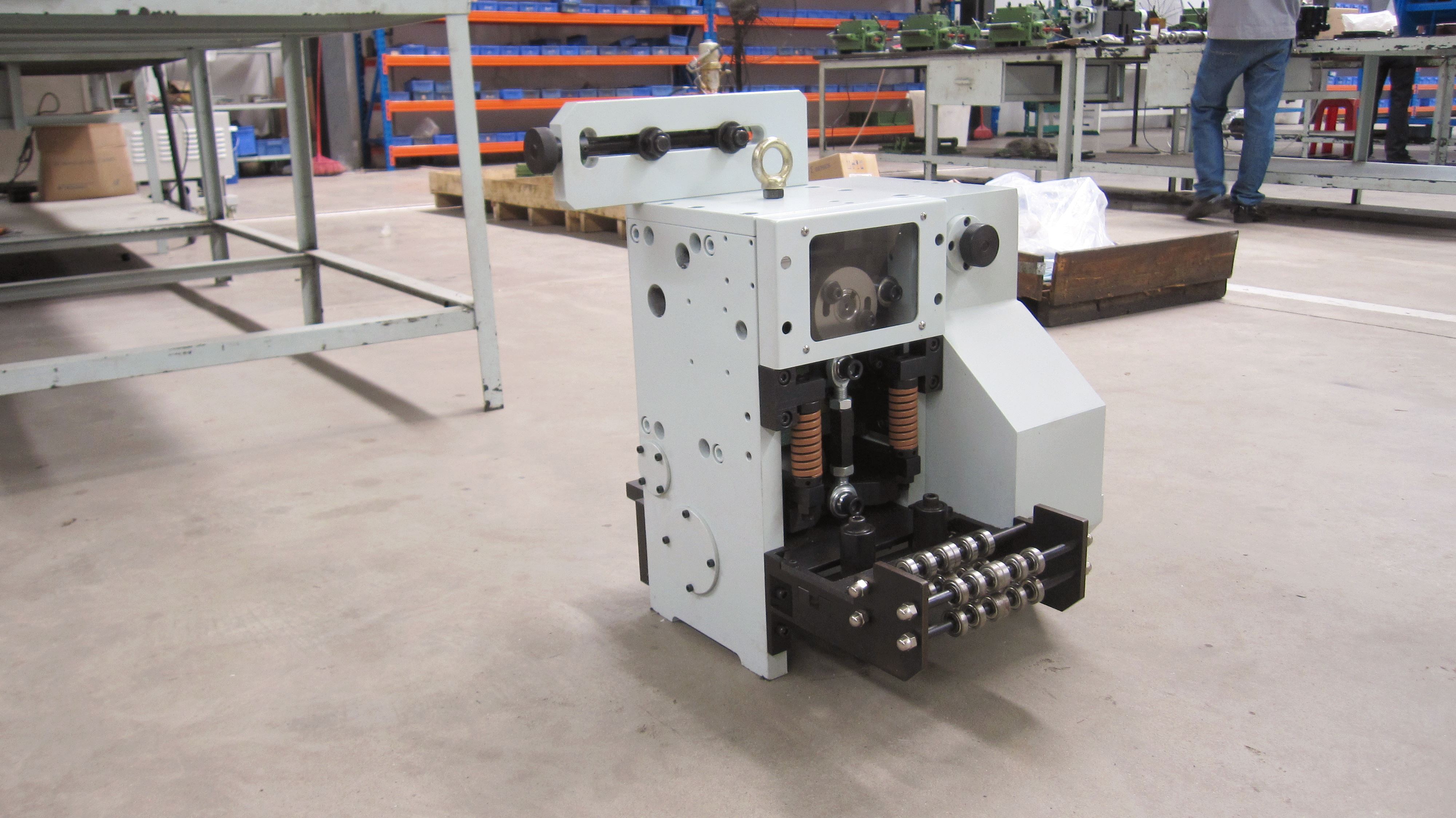

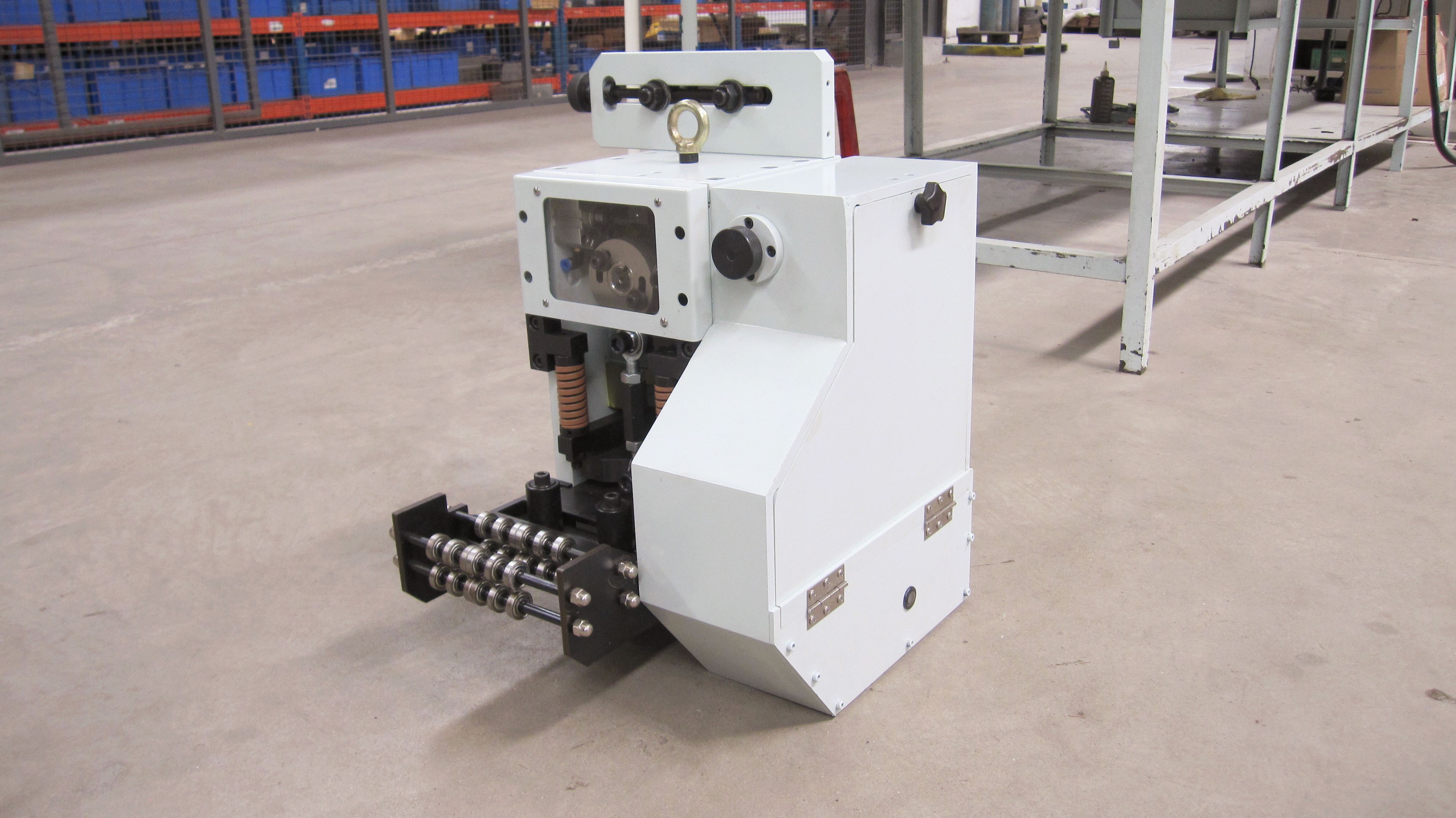

High Speed Feeder GCF-200 CAM Feeder Machine
High Speed Feeder GCF-200 CAM Feeder Machine
Max coil width: 200mm
Coil thickness: 0.1-1.6mm
Index no: 4
Max feeding length: 11.5-240mm
Feeding angle: 180
Release angle: 135-195
Feeding direction: From left to right
Coil thickness: 0.1-1.6mm
Index no: 4
Max feeding length: 11.5-240mm
Feeding angle: 180
Release angle: 135-195
Feeding direction: From left to right
Features of High Speed Gear Change Feeder
1. Designed for high-speed processing and higt precision feeding,feed length change is achieved by alternation lf 4 gears.
2. Modular configuration: gears,pneumatic material keep and release device.
3. Optional features: Material end sensing photoelectric switch,extended material support.
4. P=（mm）Feed length
2. Modular configuration: gears,pneumatic material keep and release device.
3. Optional features: Material end sensing photoelectric switch,extended material support.
4. P=（mm）Feed length
5. N= lndex No
6. N1=First gear Number of teeth
7. N2=First gear Number of teeth
8. N3=Third gear Number of teeth
9. N4=Fourth gear Number of teeth
6. N1=First gear Number of teeth
7. N2=First gear Number of teeth
8. N3=Third gear Number of teeth
9. N4=Fourth gear Number of teeth
10. D=mm）Diameter of the lower roller
11.P=N1/N2XN3/N4X∏D/N
11.P=N1/N2XN3/N4X∏D/N
