GL-400H Automatic Uncoiler Straightening 2 in 1 Machine to Poland
GL-400H Automatic Uncoiler Straightener 2 in 1
This GL-400H is for our old polish customer who has palced three order to us.
Specification:
Coil width: 400mm
Coil thickness: 0.5-4.5mm
Coil I.D: 460-520mm
Coil O.D: 1200mm
Loading capacity: 2000kg
Expansion style: Hydraulic Expansion
Straightener roller: Ø68mm*7pcs
Feeding speed: 16m/minUncoiler Motor: 1.5kw
Straightener Motor: 2.2kw
Roller pressing way: Pneumatic rod
Roller adjusting way: Eccentric turbine worm adjusting
Inverter: Delta,Taiwan
Pressing arm: with
Coil thickness: 0.5-4.5mm
Coil I.D: 460-520mm
Coil O.D: 1200mm
Loading capacity: 2000kg
Expansion style: Hydraulic Expansion
Straightener roller: Ø68mm*7pcs
Feeding speed: 16m/minUncoiler Motor: 1.5kw
Straightener Motor: 2.2kw
Roller pressing way: Pneumatic rod
Roller adjusting way: Eccentric turbine worm adjusting
Inverter: Delta,Taiwan
Pressing arm: with
Features:
1. Material Rack&Straightening Machine Assembly Together2 in 1,It could effectively save the Installation space,reduce precision material transition segment in the process of straightening,then could maximize develop of the machine performance.
2. The motor control cabinet of the material rack & straightening machine are relatively independent,also they use their own frequency converter,that means it could take more effectively protecting the machine to make sure there will not distorted when it subjected to other external forces.
3. The drive system of the straightening machine are universal joint and gear transmission,that could effectively avoid the material’s damage from passive wheel rotation.
4. The straightening wheel have dial indicator,it could found the leveling points quickly.
5. It strengthen roll stiffness according with straightening back pressure wheel,then make the straightening effect better.
6. The service life of the machine will be longer with adding the lubrication system.OEM accepted,could change the rack load,correction parameters and also could according to the need to make power or unpowered pressure arm hydraulic expansion,etc.

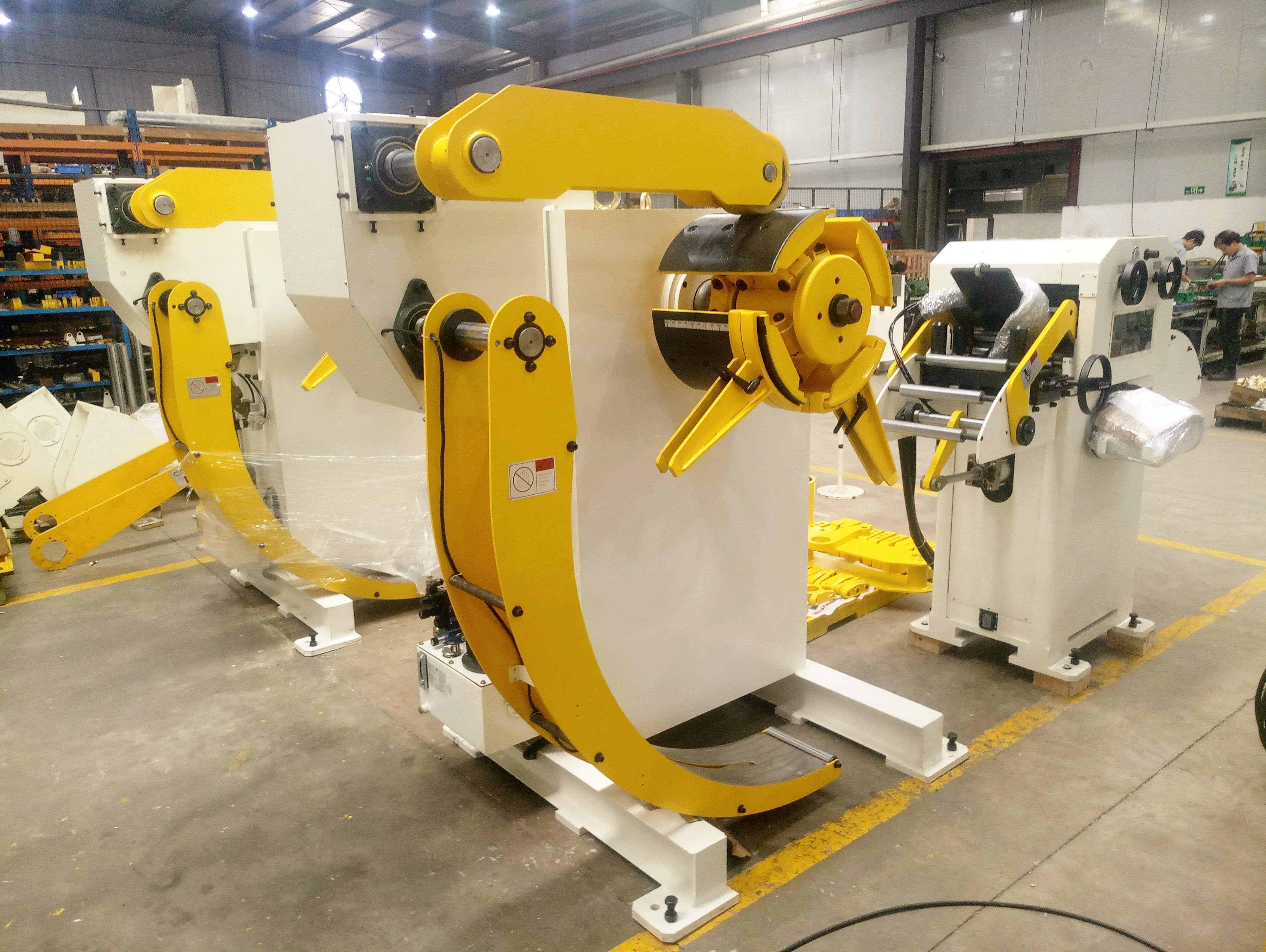

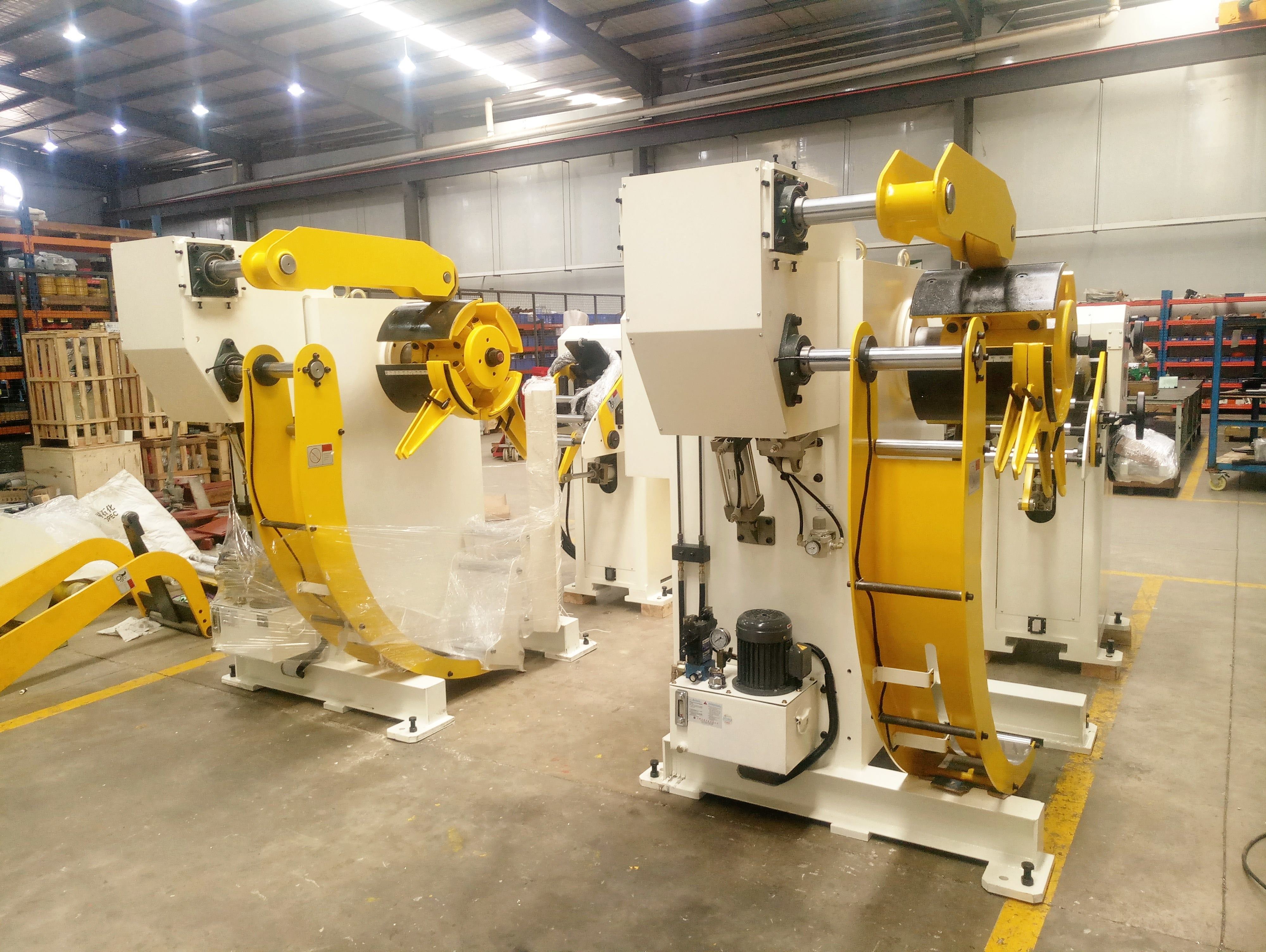

Products Details
Any interest, please contact: export@he-machine.com.
We are looking forward to making the best machine solution for your metal stamping production.
