Hydraulic 3 in 1 NC Servo Feeder with Uncoiler Straightener GLK4-1600F at the factory

Hydraulic 3 in 1 NC Servo Feeder with Uncoiler Straightener GLK4-1600F at the factory
Issue Time:2018-01-26

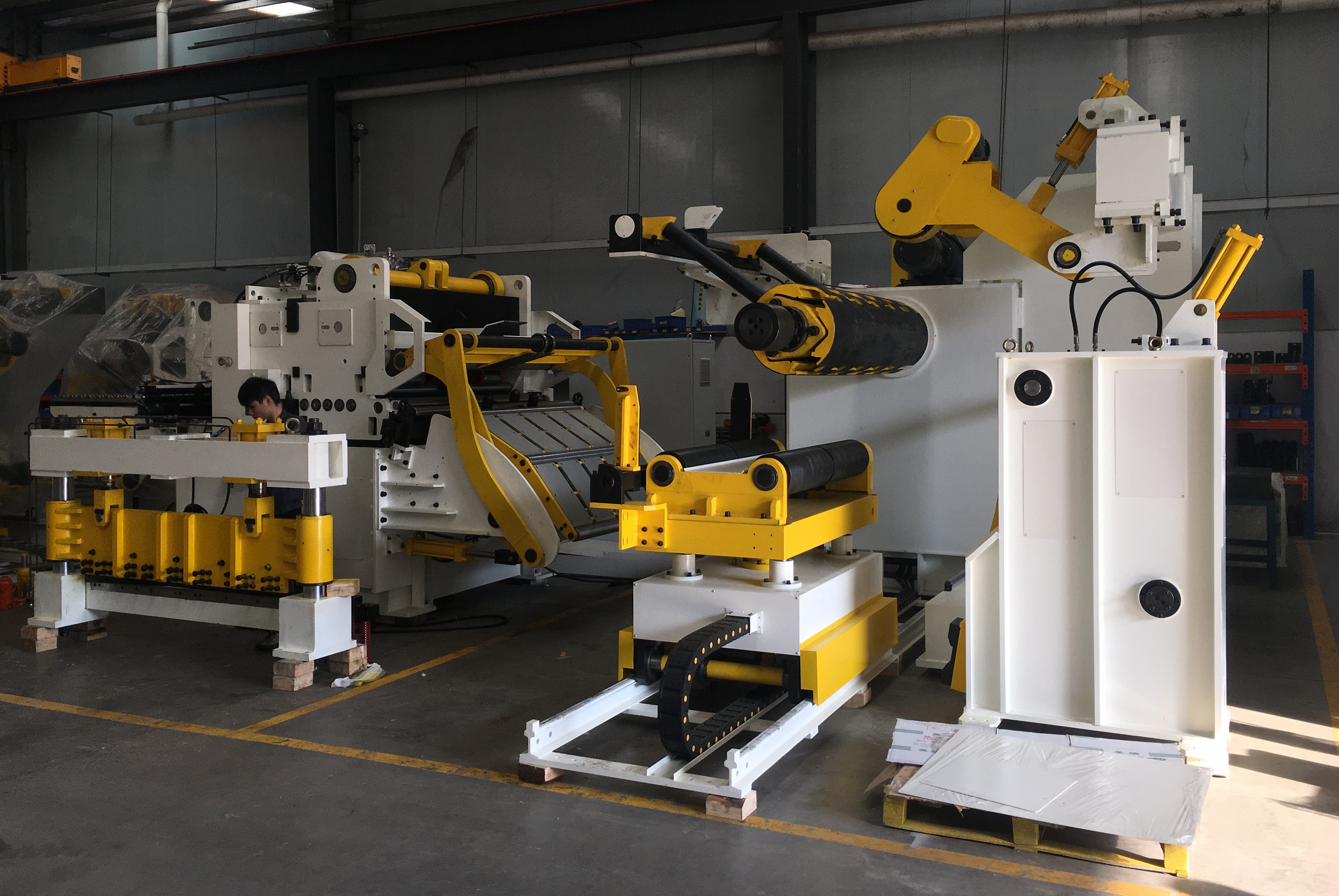

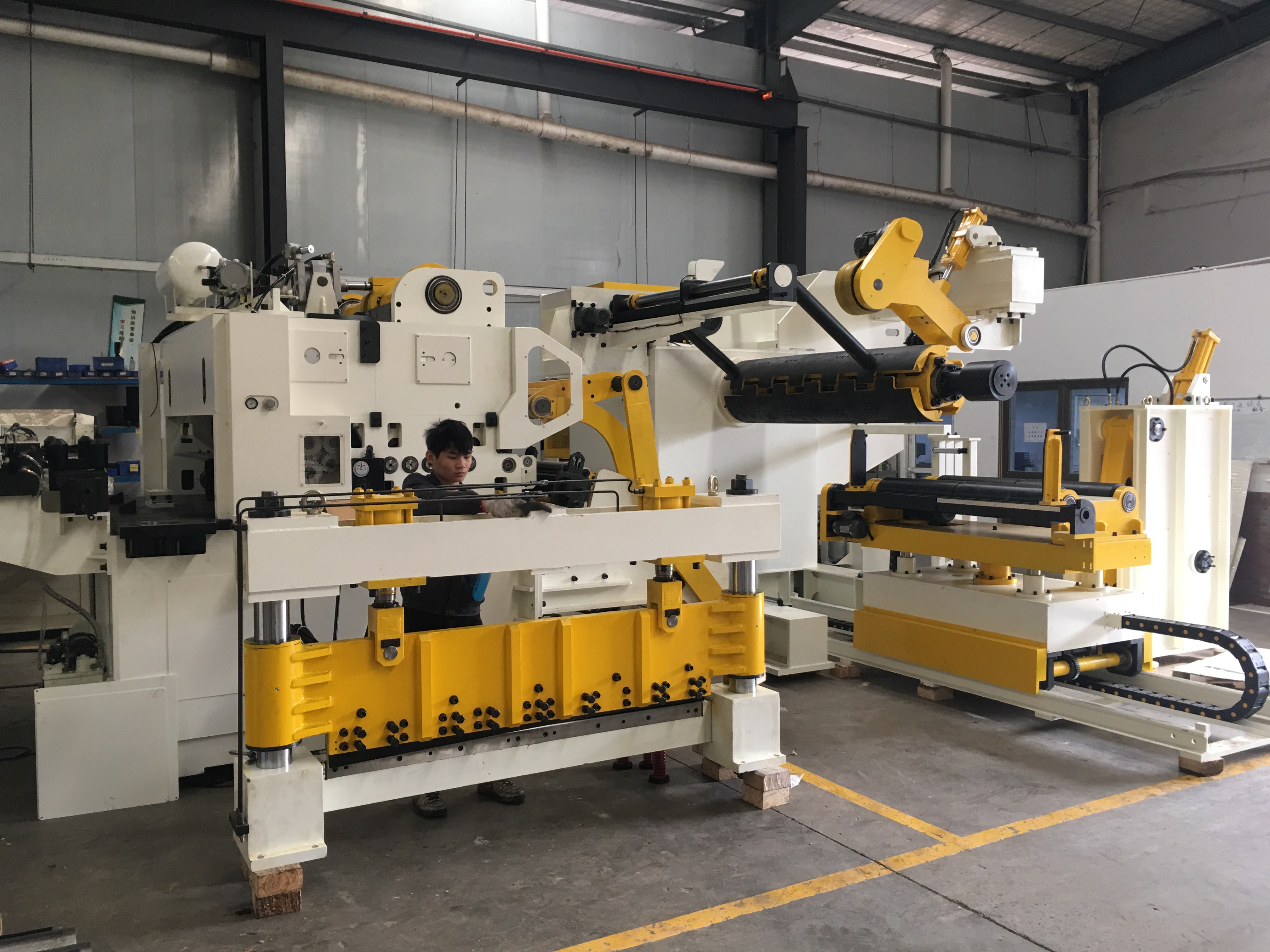

Hydraulic 3 in 1 NC Servo Feeder With Uncoiler Straightener GLK4-1600F at the Factory
3 in 1 NC Servo Feeder With Uncoiler Straightener GLK4-1600F

Specifcation:
Coil width: 200-1600mm
Coil thickness: 0.6-6.0mm
Coil loading weight: 15000kg
Coil I.D : 508mm/610mm
Coil O.D : 800-1500mm
Feeding speed: 22m/min
Expansion way: Hydraulic
Servo motor: Yaskawa, Japan
Servo drive: Yaskawa, Japan
PLC: Mitsubishi, Japan
Touch screen: Weinview, Taiwan
Feeding height adjusting way: Electrical control
Straightening adjusting way: Electrical control
Feeding direction : right-left


 Features:
1、Working space will be minimized by innovative structure of the machine.
2、Human-computer interface is adopted to simplify operating and ease of feeding.
3、Japanese  motors are adopted to guarantee high precision feeding.
4、Feeding and straightening rollers have been characterized by high hardness, good abrasion resistance and long lifespan after special heat treatment.
5、Various options are available for different sizes of punching machines and operational requirements. Special standard is also accepted.
6、Eleven working rollers have been characterized by high rigidity and high flatness.
