Compact Coil Feeding Line GLK4-600 Assembly for UK Customer
Compact Coil Feeding Line GLK4-600 Assembly for UK Customer
This is a repeat order from our UK client to equip with the 250Ton AIDA press machine.

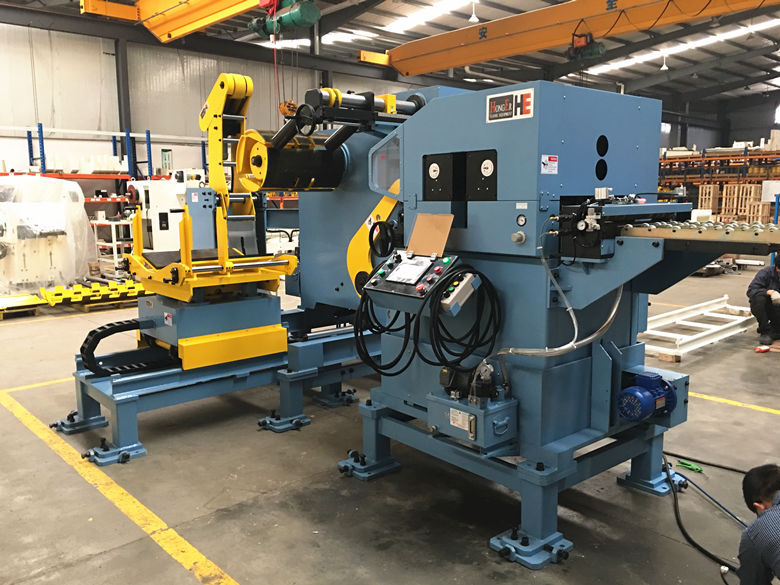

Decoiler straightener feeder 3 in 1 machine
GLK4-600:
Coil thickness:0.6-6.0mm
Coil width:70-600mm
Coil loading weight:5000kg
Coil I.D :508mm
Coil O.D :1400mm
Working roller: upper 4 down 3 *φ68mm
Feeding roller:1 set * φ84mm
Feeding speed: 22m/min
Expansion way: Hydraulic
Feeding height :1540±100mm
Brake Type :Pneumatic disc brake
Feeding height adjusting way: electrical control
Straightening adjusting way: electrical control
Coil width:70-600mm
Coil loading weight:5000kg
Coil I.D :508mm
Coil O.D :1400mm
Working roller: upper 4 down 3 *φ68mm
Feeding roller:1 set * φ84mm
Feeding speed: 22m/min
Expansion way: Hydraulic
Feeding height :1540±100mm
Brake Type :Pneumatic disc brake
Feeding height adjusting way: electrical control
Straightening adjusting way: electrical control

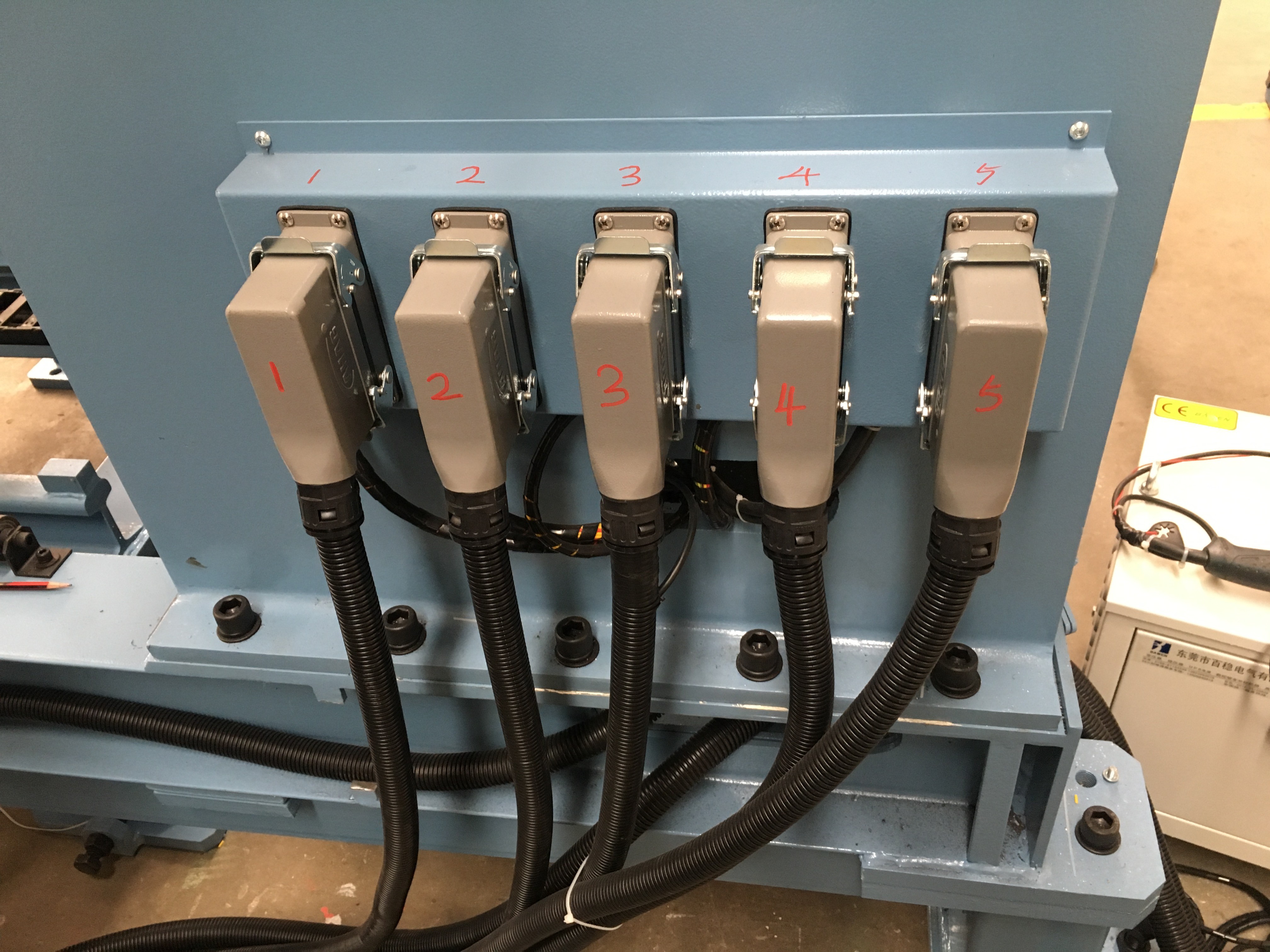

Electrical component :
NC servo motor: Yaskawa,Japan

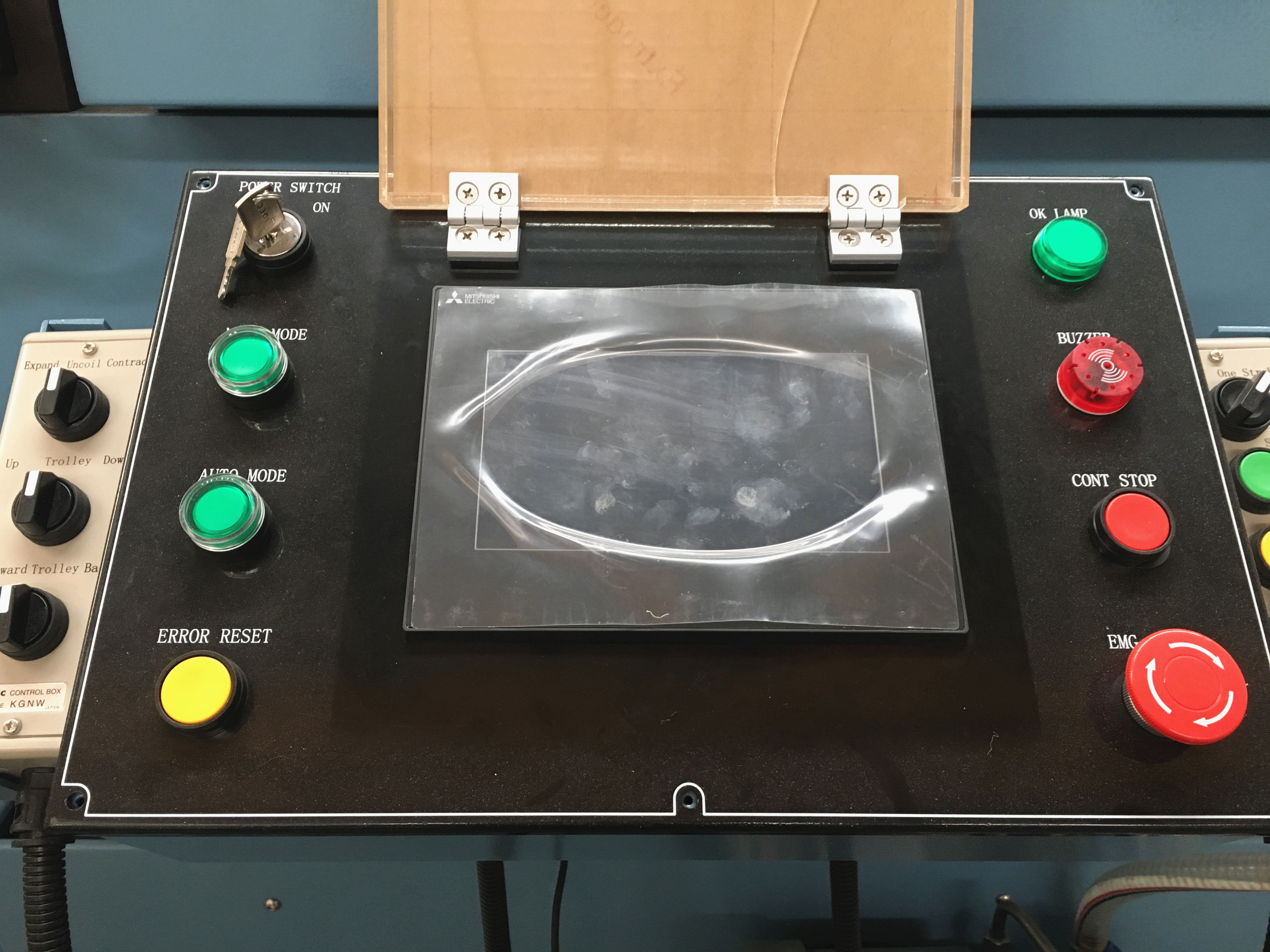

PLC and touch screen :Mitsubishi
Relax cylinder :CKD/WPI
Solenoid valve :SMC
Honger compact feeding line achieves profitable production in extremely reduced space.
Any interest, please contact: export@he-machine.com.
We are looking forward to making the best machine solution for your metal stamping production.
