High Speed Production Line for Laminations

High-speed stamping technology is an advanced forming and processing technology developed in the past 20 years. Among them, the motor core/rotor stator stamping is a high-tech stamping technology that integrates equipment, dies, materials, and processes.


The modern stamping technology of the motor core/rotor stator parts is based on high-precision, high-efficiency, long-life, multi-position progressive die that integrates each process in a die to perform automatic punching on the high-speed punching bed.


The punching process is that after the strip material comes out of the coil material, it will be leveled by a leveling machine, automatically fed by an automatic feeding device, and then the strip material enters the progressive dies. And the motor core/ rotor stator punching can be continuously completed from punching, forming, finishing, trimming, automatic lamination, blanking with skewed laminations, blanking with rotary laminations or other blanking processes, to finished products of motor core/ rotor stator parts comes from the progressive dies. The entire punching process is done automatically on a high-speed press machine.

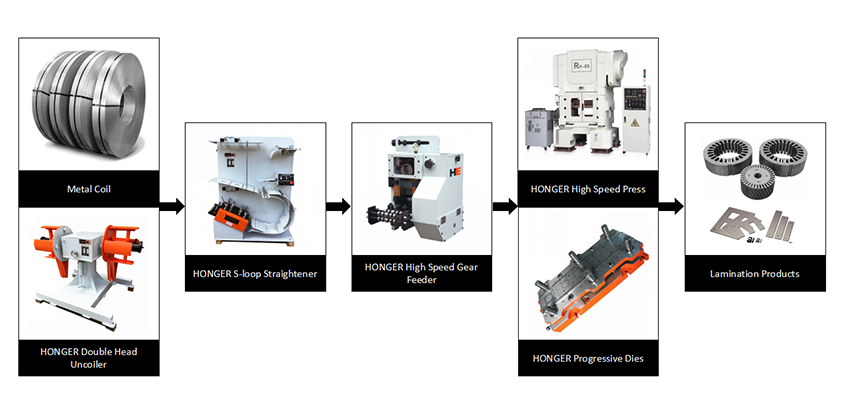

The raw material punched by the progressive die is in the form of a rolled coil, so the stamping line is equipped with automatic feeding equipment such as double decoiler, s loop straightener machine, and cam feeder or high-speed NC servo feeder.


Due to the high degree of automation and high speed of the motor core stamping equipment, in order to fully ensure the safety of the progressive dies in the punching process, modern stamping equipment is equipped with an electrical control system in case of an accident. If a fault occurs in the process of making the motor core/ rotor stator, the error signal will be immediately transmitted to the electrical control system. then the electrical control system will send a signal to stop the stamping immediately.


For now, the most common equipment for punching motor core parts is high-speed H frame press. It has high stamping accuracy, machine rigidity, and reliable machine safety system. The stamping speed is generally in the range of 200 to 600 times/min, which is suitable for automatic laminating of motor cores, and other structure parts need skewed, rotating and automatic stacking rivets.





2

High Speed Production Line for Metal Buttons

3

High Speed Production Line for Terminals

In the automotive, communications, computer and other electronics manufacturing industries, the terminals are indispensable parts. It is usually in the form of a strip, has a clamping head and a lead leg integrated with it, and be formed by strip sheet metal stamping.



The traditional terminal stamping processing method uses the traditional press with manually feed. However, this method has low processing efficiency, poor stamping product quality, high processing cost, and high labor intensity, and is increasingly unsuitable for the needs of modern processing and production.



For the terminal production, the most efficient and reliable processing method in the stamping industry currently is the use of high-speed stamping production line. It can not only improve the processing speed of the stamping of the metal strip terminal to increase production efficiency but also produce good quality and low-cost terminals, which truly meet the needs of modern processing and production.



A high-speed terminal stamping line is usually composed of a pallet decoiler for high-speed decoiling, a precision straightener machine for strip leveling and stress relief, a gripper feeder for high-speed feeding, a high-speed punch press for stamping production, and a recoiler machine for automatic leveling and collecting stamped terminals. Together, they form a complete and fully automated stamping line that can process terminal products of various types and applications.



During the use of the terminal high-speed stamping production line, the operator only needs to perform simple feeding, priming, setting, and testing. After that, the production line can complete the processing of the entire coil without any manual assistance.



4

Precision Production Line for Saw Blades

5

Precision Production Line for Other Metal Products

6

Compact Production Line for High Strength Material
